3 Axis Dispensing Systems Types

*DZJ-400 / 3 Axis Stepper Motor Controlled Dosing System

*DZJ-400-SE / 3 Axis Servo Motor Controlled Dosing System

*DZJ-500 / 3 Axis Desktop Stepper Motor Controlled Dosing System

*DZJ-500-SE / 3 Axis Desktop Servo Motor Controlled Dosing System

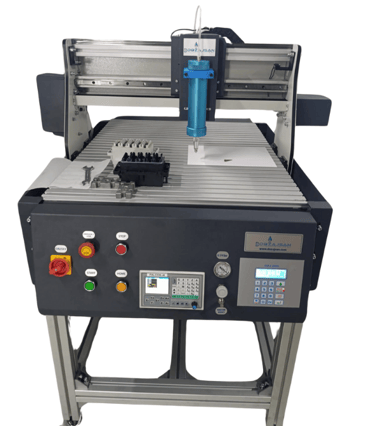

DZJ-400 3 Axis Router Dispensing Machine

  • X-Y-Z 3 Axis Movement Ability

  • Workspace : X (500 mm) - Y (500 mm) - Z (150 mm)

  • Manual - Semi - Automatic - Fully Automatic Use

  • 4 Axis Control Unit

  • Progman Movement Via G Code

  • Full Control With Professional CNC Screen

  • 3 Axis Stepper Motor Motion

  • Z Axis Embedded Dozajsan System

  • Repeatability : +/- 0.1 mm

  • Working Voltage : 220 V / 50 Hz

  • Gross Weight : 100 Kg

  • Working Pressure : 0.1 - 4 Bar / 0.1 - 6 Bar Optional

  • Speed X(120 mm/sn) - Y(120 mm/sn) - Z (100 mm/sn) Max.

  • Device Dimensions : E/B/Y (1100 mm / 1200 mm / 1400 mm )

  • Dry Contact Output Devices Can Be Connected

  • It is the first machine with embedded Dozajsan system produced in Türkiye.

  • DZJ-200 / DZJ-250 / DZJ-300 Optional Connectable.

  • Our Devices Are Produced Locally And Nationally İn Dispensing Machine İkitelli Facilities.

It is the first device produced in Türkiye with a built-in Dispensing system...

You can click the link below for our Youtube videos...

www.dozajsan.com / satis@dozajsan.com

+90 507 540 80 89

Device Features ;

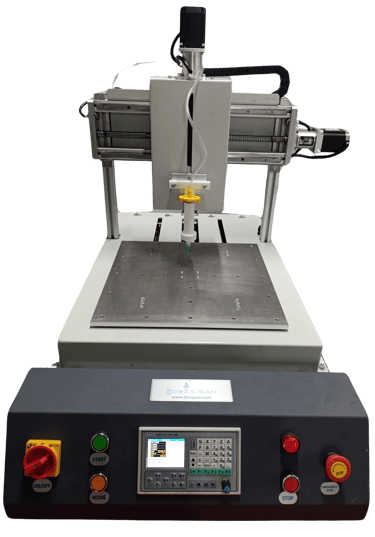

DZJ-500 3 Axis Router Dispensing Machine

  • X-Y-Z 3 Axis Movement Ability

  • Workspace : X (400 mm) - Y (400 mm) - Z (150 mm)

  • 4 Axis Control Unit

  • Progman Movement Via G Code

  • Full Control With Professional CNC Screen

  • 3 Axis Stepper Motor Motion

  • Repeatability : +/- 0.1 mm

  • Working Voltage : 220 V / 50 Hz

  • Gross Weight : 70 Kg

  • Working Pressure : 0.1 - 4 Bar / 0.1 - 6 Bar Opsiyonel

  • Speed X(100 mm/sn) - Y(100 mm/sn) - Z (100 mm/sn) Max.

  • Device Dimensions : E/B/Y (1100 mm / 1100 mm / 1000 mm )

  • Dry Contact Output Devices Can Be Connected

  • DZJ-200 / DZJ-250 / DZJ-300 Optional Connectable.

  • Our Devices Are Produced Locally And Nationally İn Dispensing Machine İkitelli Facilities.
